Introduction
Tailscale is a modern VPN solution built on WireGuard, designed to provide secure, scalable networking across diverse environments. It simplifies the process of connecting devices, whether they’re behind firewalls, NATs, or across private networks. Unlike traditional VPN services, Tailscale focuses on helping devices traverse NATs and firewalls while establishing connections through its coordination server. Once the connection is established, traffic is typically sent directly between devices in a peer-to-peer fashion, without routing through Tailscale’s servers. In some cases where strict NATs or firewalls prevent direct connections, Tailscale uses its DERP (Designated Encrypted Relay for Packets) servers to relay encrypted traffic, ensuring reliable communication. Please check these links [1,2] for details on how it works. A tailnet is a private network created and managed by Tailscale that allows devices to securely communicate with each other as if they were on the same local network, regardless of their physical location. Each Tailnet is isolated from others, meaning devices within one Tailnet cannot communicate with devices in another unless explicitly allowed.Use Cases

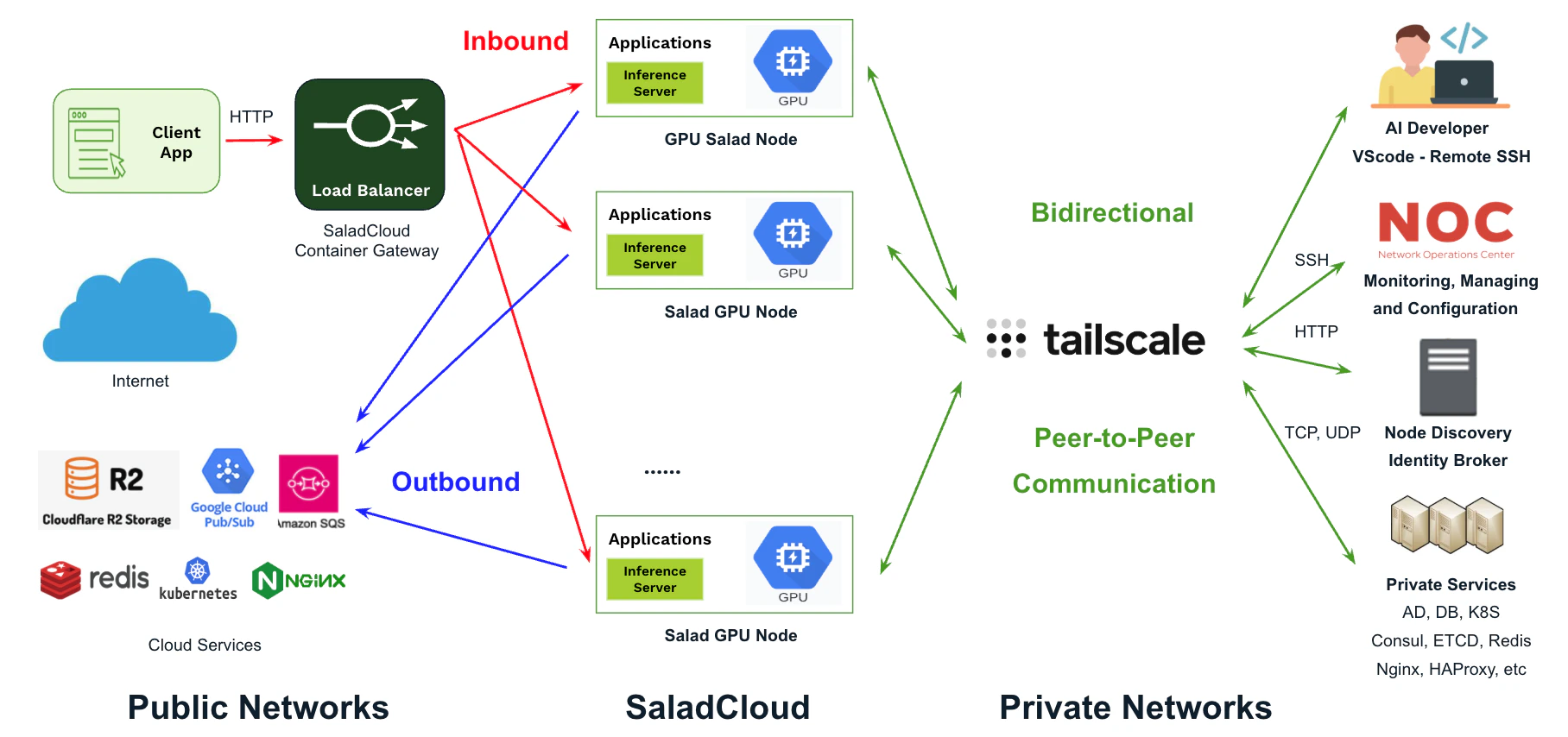

SaladCloud primarily handles GPU-intensive workloads across most use cases, while also interacting with external services or systems to receive requests or jobs and deliver results. Its native networking allows all nodes to initiate outbound connections to these systems. When the Container Gateway is enabled, the external systems can also send HTTP requests to a group of Salad nodes and receive responses seamlessly. Integrating Tailscale with SaladCloud unlocks additional use cases, including:
- Remote Development: Developers can use VSCode - Remote SSH and JupyterLab on Mac or Windows to seamlessly test and debug their code running on Salad GPU nodes.
- Network Management and Troubleshooting: Network operators can SSH into Salad nodes for configuration, management, and troubleshooting purposes.
- Node Discovery and Identity Broker: Detecting when nodes come online or go offline, while implementing an identity broker for private, centralized authentication and authorization. This setup provides temporary credentials to Salad nodes for accessing external systems using JWT authentication.
- Accessing Private Services: Connecting Salad nodes to private services hosted on-premises or in the cloud, including databases, message queues, Kubernetes clusters, and proxies.
- Enabling Meshed Communication: Facilitating secure, direct communication between Salad nodes and private systems in a mesh network.
Scenarios and Protocols

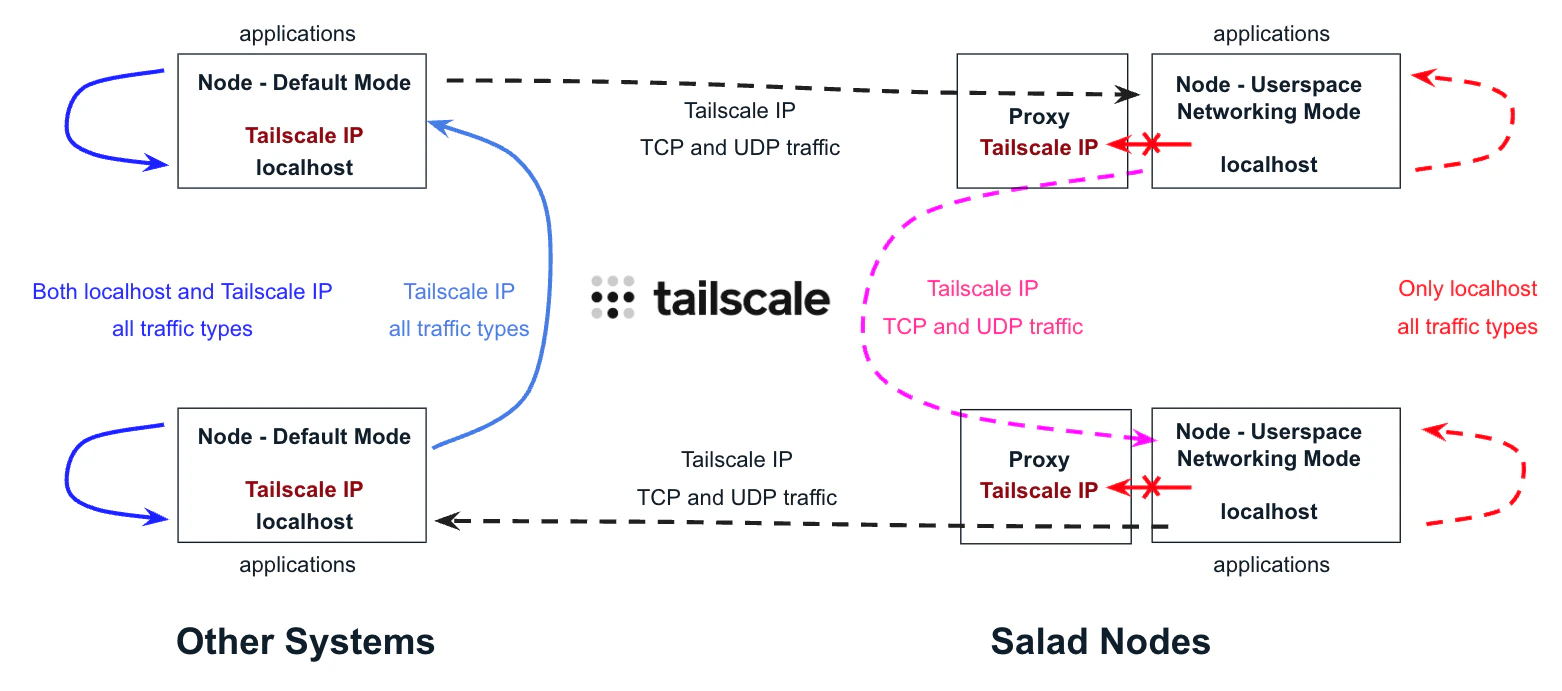

By default, Tailscale on Linux systems uses the /dev/net/tun device driver to create a virtual interface with a Tailscale IP, allowing nodes to access themselves and others for all traffic types via their Tailscale IPs. However, on SaladCloud, workloads run as containers in non-privileged mode and do not have access to the device driver. To integrate SaladCloud with Tailscale, we leverage its userspace networking mode, which provides a local SOCKS5 and HTTP proxy, enabling applications to communicate across nodes. The SOCKS5 proxy is a versatile and flexible solution that supports both TCP and UDP traffic. In contrast, the HTTP proxy operates over TCP and is limited to proxying only HTTP and HTTPS traffic. For a node in Tailscale’s userspace network mode, outbound connections to other nodes within the same Tailnet must be explicitly configured to use the SOCKS5 or HTTP proxy through environment variables or network proxying tools like proxychains, while inbound connections are automatically routed through the SOCKS5 proxy by Tailscale. Here is a summary of the supported communication scenarios and protocols when integrating SaladCloud with Tailscale.| Supported Communication Scenarios and Protocols | Target: Default Mode (Other Systems) | Target: Userspace Networking Mode (Salad Nodes) |
|---|---|---|
| Source: Default Mode (Other Systems) | The application can access peers via their Tailscale IPs for all traffic types. The application can access itself via its Tailscale IP or the localhost (127.0.0.1) for all traffic types. | The application can access peers using their Tailscale IPs for TCP and UDP traffic. |
| Source: Userspace Networking Mode (Salad Nodes) | The application can access peers via their Tailscale IPs for TCP and UDP traffic by using the local proxy provided by Tailscale. | The application can access peers via their Tailscale IPs for TCP and UDP traffic by using the local proxy provided by Tailscale. The application can access itself via the localhost (127.0.0.1) for all traffic types, but cannot reach its Tailscale IP. |
Summary
After integrating SaladCloud with Tailscale, you can fully utilize Tailscale’s features, solutions, and ecosystem to build a wide range of applications:- Salad nodes can securely connect to systems within the same tailnet, including on-premises datacenters and private services hosted on public clouds. This enables simpler development of distributed applications over TCP or UDP.
- With Tailscale’s pre-built Kubernetes integration, Salad nodes can directly access pods and services—such as self-managed RabbitMQ and Redis—within public or private Kubernetes clusters.
- Network operators and developers can easily use SSH clients or VSCode on Mac or Windows to test and debug applications running on Salad nodes.
- You can build clustered applications on Salad nodes using TCP or UDP communication. However, ensure that in-cluster communication uses Tailscale IPs, while intra-node communication uses the localhost. Note that Ray is currently incompatible with the solution because it uses a single IP for both in-cluster and intra-node communication.
